Rugged Industrial DVR Camera System

Rugged Camera Systems / IMD-HD1080P Series

Rugged Industrial DVR Camera System

A complete visibility and recording kit for mobile equipment, industrial vehicles, and harsh outdoor sites: a sunlight-readable industrial monitor (7"–27"), IP68-rated 1080p night-vision cameras, and a 4- or 8-channel DVR — with mounting brackets, weatherproof connectors, and all power and signal cabling included in one package.

• Display: 7"–27"
• Brightness: 400–1500 nits
• Cameras: AHD 1080p, IP68
• DVR: 4- or 8-channel

Complete kit

Industrial monitor, IMD-5203B rugged cameras, DVR, mounting hardware, and weatherproof cabling arrive as one matched package — no component hunting.

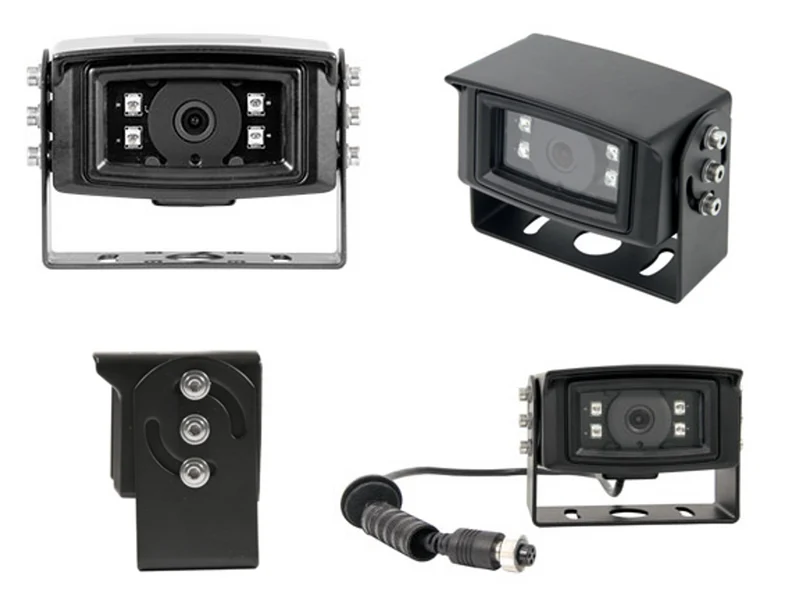

Built for abuse

IP68 metal-housed cameras run from -20°C to 70°C and are vibration and shock tested to IEC 60068-2-64 / 60068-2-27 for vehicle and heavy-equipment duty.

Night vision

18 high-power infrared LEDs and a wide-angle 2.8 mm lens (3.6 mm optional) keep a clear picture in yards, tunnels, and cabs after dark.

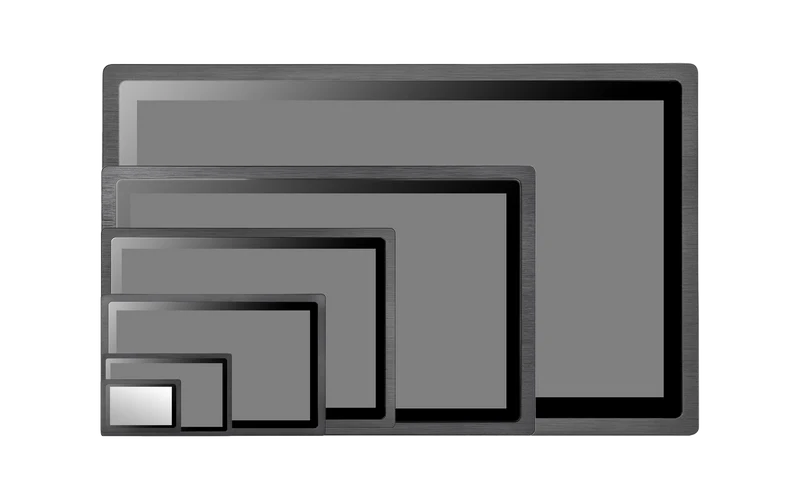

Sunlight-readable display

Choose 400 to 1500 nits with anti-glare options so operators can see camera feeds clearly in direct sunlight.

Key specifications

Camera resolution AHD 1080p, 2 MP (GC2053 CMOS sensor) Camera protection IP68 waterproof, rugged metal housing Night vision 18 high-power infrared LEDs Lens 2.8 mm wide-angle standard; 3.6 mm optional Operating temperature -20°C to 70°C (camera) Shock / vibration IEC 60068-2-27 impact; IEC 60068-2-64 random vibration DVR recording 4-channel or 8-channel Display options 7"–27" industrial monitor, 400 / 800 / 1000 / 1500 nits Power 12 V DC cameras; 12–36 V DC monitor input Certifications CE / FCC / CB / RoHS Warranty 3 years

Recommended uses

• Cranes, forklifts, and heavy-equipment operator visibility
• Industrial vehicle and fleet recording
• Loading dock, gate, and yard monitoring
• Site security, incident review, and process documentation
